Corrugators

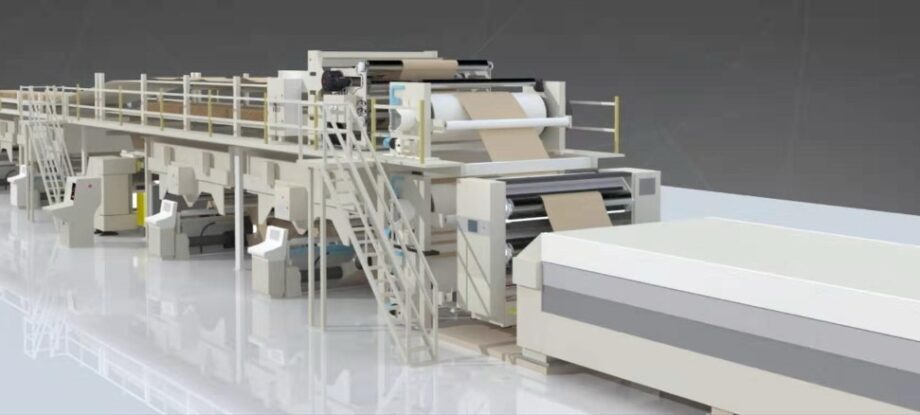

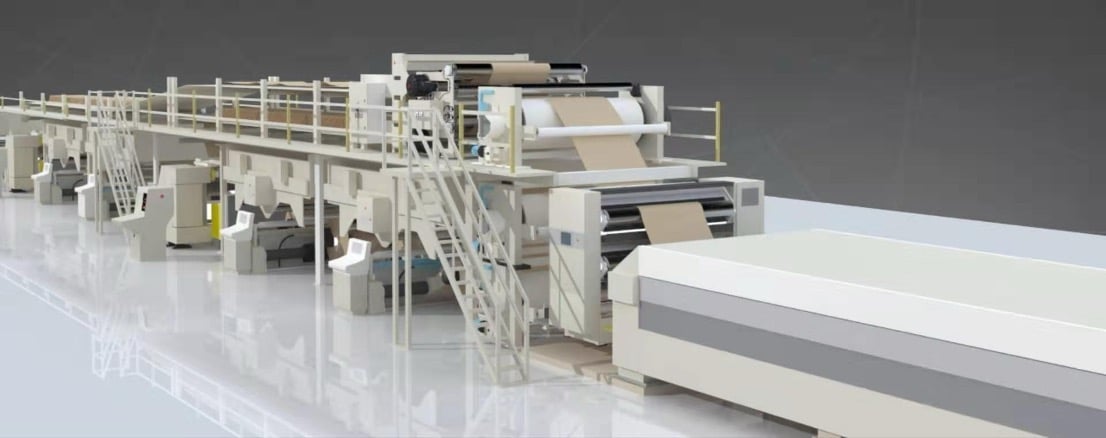

The corrugator is the production heart of every box plant — the integrated line that converts flat reels of kraft and medium into bonded, fluted board ready for conversion.

Every operation downstream — printing, die-cutting, folder-gluing — depends on the corrugator running steadily and delivering flat, well-bonded, dimensionally stable board across the full range of flutes and basis weights.

Its design directly shapes plant capacity, paper consumption, glue and steam usage, and box strength.

• Integrated wet end system includes splice sync, wrap arm controls, gap controls, and bridge tension controls
• Positive pressure-type singlefacer provides advantages of runnability and uptime over vacuum-type machine
• Gun-drilled hot plates on doublebacker delivers better heating efficiency
• Modular design of corrugator allows for easy access for clean-up and maintenance
• User-friendly touch screen operator console with latest interactive PC control

• Cassette-type singlefacer with positive pressure creates stronger board
• Features different corrugating roll diameters to reduce vibration
• Glue film thickness is adjusted automatically according to machine speed
• 10-minute quick roll change.

• Chrome-plated glue roll and metering roll, with special netting engraved on the surface of the glue roll
• Hydraulic controlled glue roll provides consistent glue application
• Precise electric adjustment for gap settings with digital indication
• Glue unit can be rolled out for easy clean up and maintenance

• Thick chrome-plated steel heating plates for better heating efficiency
• Excellent heat transfer of gun-drilled hot plates enhances performance
• EUTAC press system provides excellent bonding while eliminating board crush
• Four-section heating system with two sections steam pressure adjustment
• Automatic belt guidance in heating section and cooling section

• Single station with one axis of slits and two axes of scores with option for second station
• Minimum slit spacing: 150 mm and score spacing: 0 mm
• Thin blades with automatic sharpening and lubrication ensures excellent slit quality
• Individual slit and score tools are accurately positioned by independent servo motors
• Combination tooling of up to three score profiles provides flexibility

• Servo motor control provides excellent cutting accuracy of +/-1mm.
• Great cut length vs. speed performance
• Low energy consumption.
• Reduced maintenance increases uptime

• Automatic downstacker with multi-order stacking
• Standard stacking height: 1700 mm
• Standard sheet length: 3500 mm
• Excellent stack quality and minimized recovery time for order change efficiency
• Automatic discharging of boards at set height

• Steel and/or urethane splice sealing nip rolls create a stronger splice.
• Digital automatic tension control.
• Light weight paper splicing capability.
• CT Drive/PLC controls (CT is brand name of drive）
• Corefinder™ automatic splice initiation.
• On-Board PC Touchscreen for operator and maintenance interface.
• Cool lighting system.
